Position Lamp -

Some car not show very clear marking lamp.  We give more power on the side mark (parking lamp). While turn sign on, The parking will off automatically.

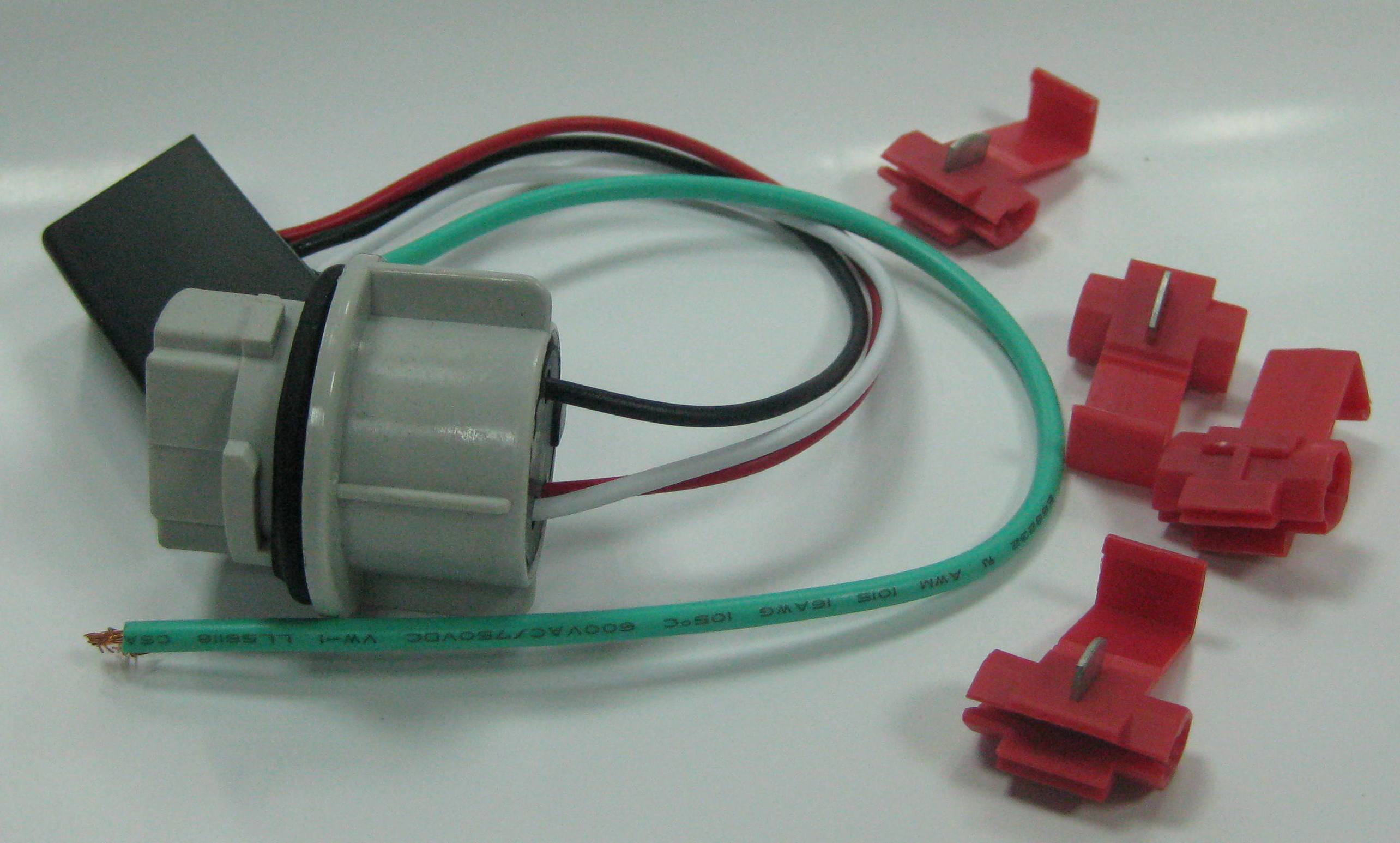

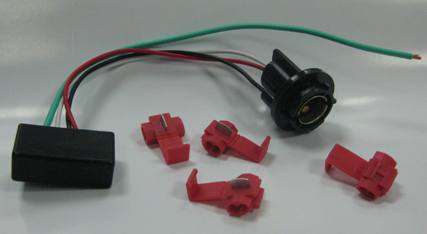

1. 1157 or 3157 series                                                                  2. 3157 series





Red- Turn light

Black- Batter ground(-)

Green – Mark light

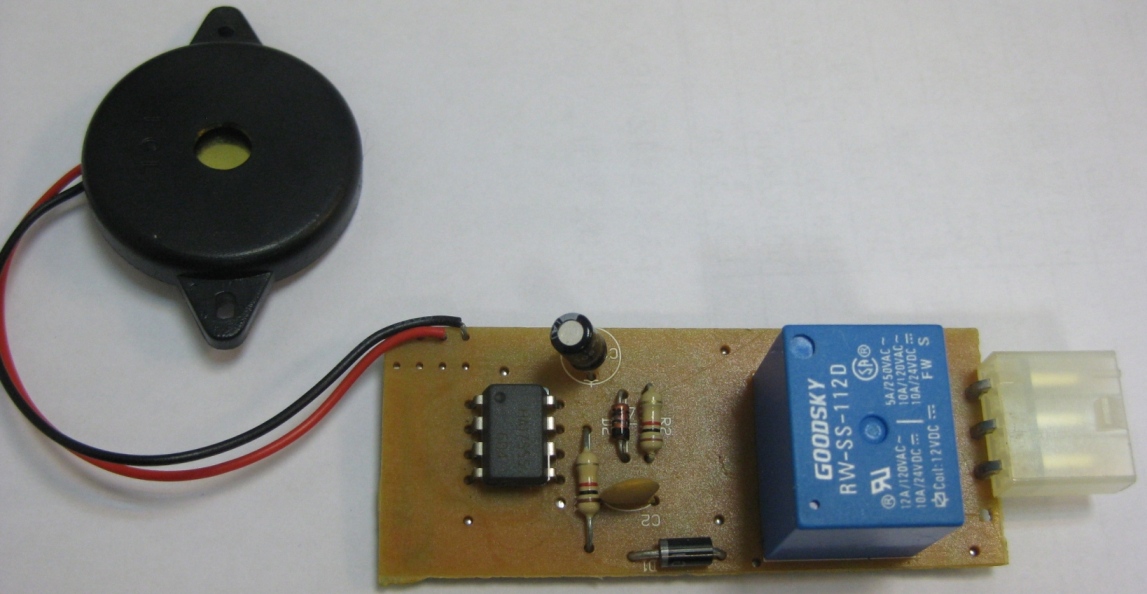

PCB control design head lamp reminder

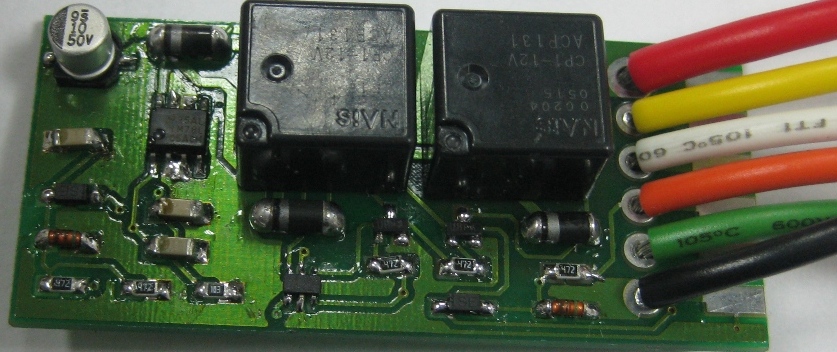

PCB control design

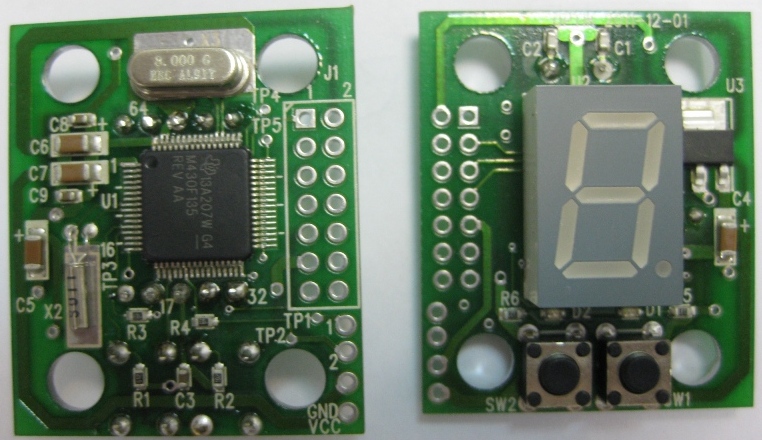

PCB control design

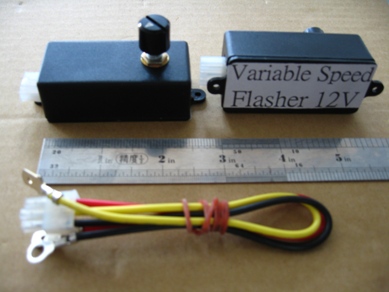

Variable Flasher 12V





video





Catalogue



Electronics Module

   - 控制電路





click here to see video



click here to see video 2



Reed switch -
For car/ bus Trunk ,door light....
maximum power 10amp 100watt.
simple installation.
magnet contact off















Headlamp Reminder - 大燈提醒控制路

SPEC -

3 wire
Red wire to low beam
yellow wire to ignition
Black wire to ground
While low beam on ignition off.  Buzzer on.
if both on or both off.  Buzzer stop.







      click here to see video      click here to see video

Touch Switch - 觸控開關

SPEC -

Connect Input, output 12V and ground wire.

Power 12Volt, 3Amp output.

Touch the sensor will On, Touch again will Off.

Good to control the indoor light, fan, ….





Model No. Headlamp Reminder - 大燈提醒控制器

Description-

Connect the headlight remind you while headlight forgot.

Headlamp – Read.

Ground – black.

Ignition - Yellow







        click here to see video

Model No. DR-1 Delay Relay Flasher - 延遲開關

Description-

Delay 15 second to off.

PCB could revise to different time of delay also could be changed to reverse way.

SPEC -

Connect it will flash for 6 seconds.

Power 12Volt

10Amp.

Good for Horn, light.









Relay Box - 繼電器

Description-

Relay for 12volt/24volt.

30Amp.

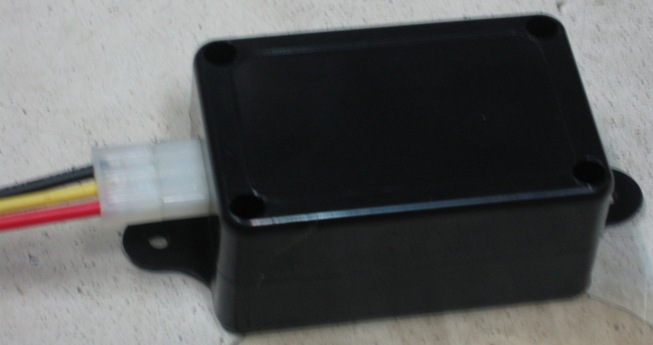

Electronics Module - Flasher

   - 閃光燈控制器



click here to see video

Model No. FS-01 Speed Variable Flasher

 - 可調速閃光燈控制器

Description-

For Tungsten/Halogen bulb

Frequency variable.

The feature offer an inside knob, speed will be variable you will feel the soft blink.

12Volt Variable speed Flasher.

3 wire

red – power in

Black – Ground

Yellow – Power out

Speed from 1sec to 3 sec per cycle.









Model No. FS-02 Alternative Flasher

 - 可調速交互閃光燈控制器

Description-

The feature offer 2 outlet wires connect 2 sets of bulbs to Alternate.

The Alternative bulb will save energy & cause attraction.









Model No. FS-04 Flasher with Buzzer

 - 可調速交互閃光燈控制器

Description-

The Loud Tone will warn people for safety driving.
